Product card:

Type AP10M
Product ID 2TKA00004261
EAN 6438199008158
Name Junction box IP65

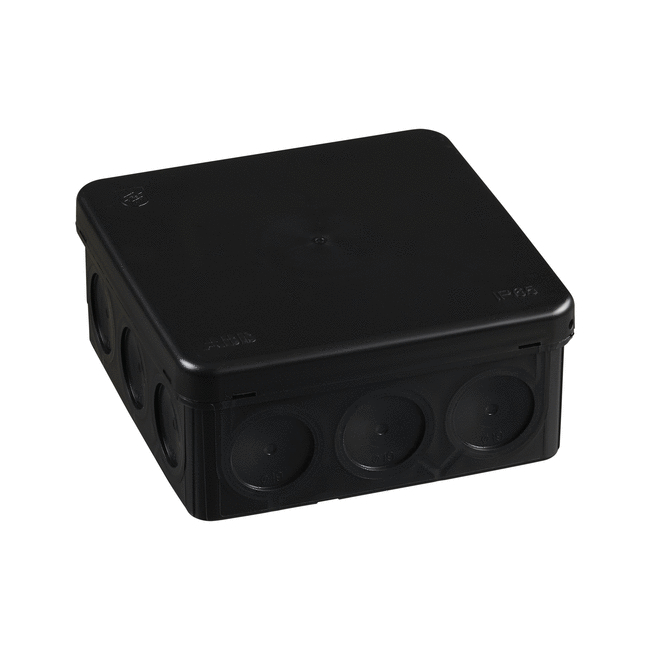

Surface-mounted junction box, IP65, 104 x 104mm, black

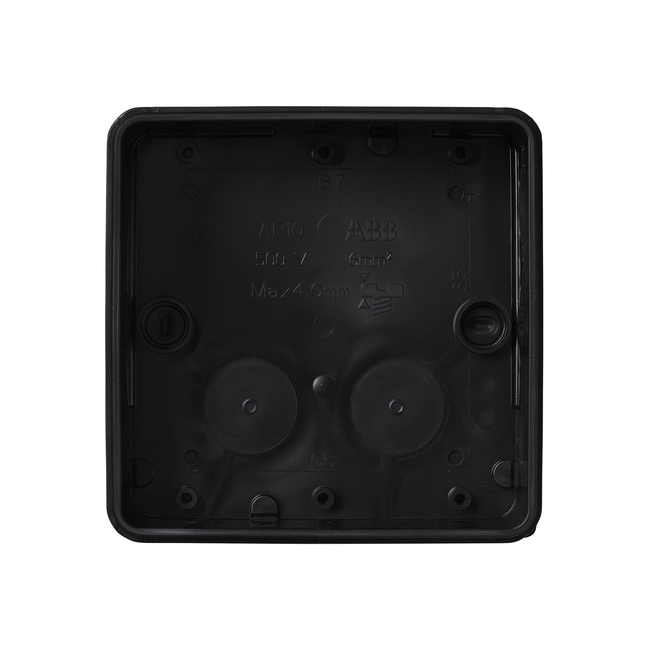

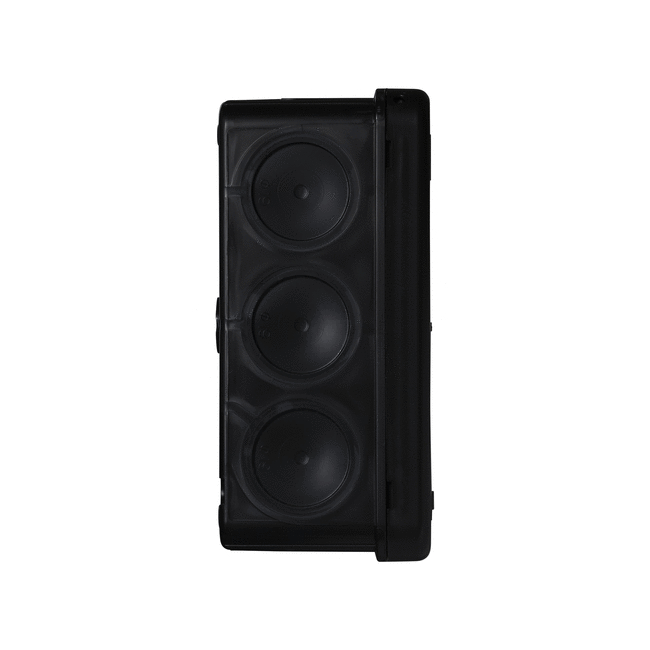

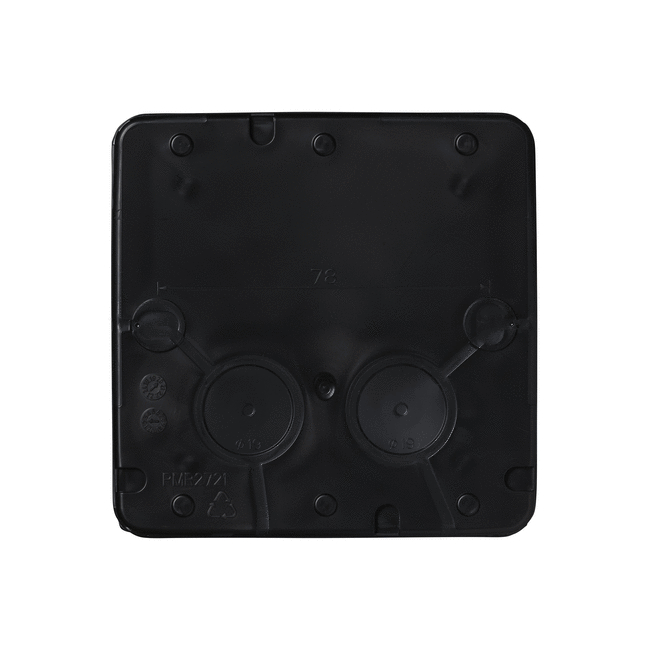

Description The black square junction box AP10M (6,0 mm², 500 V) is equipped with 12 membrane cable entries (Ø 19 mm) in the sides, and two on the bottom. Cables are easy to connect by simply inserting the stripped ends through the inlets. The box locks by snapping and can be opened by inserting a screwdriver (for example) into the opening slots - no screws are needed. The box can be furnished with strain-reliefs AS9.10, AS9, AS9.1 and AS9.3. Mounting temperature -25...+60 °C. Made of halogen free material (IEC/61249-2-21)
Package 5/30
Unit PCS


JNLMUKH
  BVBBVB IP65

Dimensions
Dimensions: 104 x 104 mm

Classification
Enclosure class: IP65

Electrical quantities
Rated voltage: 500 V
Wire range: 6 mm²

Colors
Colour: Black
Colour code: RAL9003

thermal conditions
Operating temperature: -25 … 60 °C

ETIM
ETIM 7: EC002600
ETIM 8: EC002600

ETIM 8

Max. conductor cross section: 6 mm²
Equipped with: None
Shape: Square
Mounting method: Universal
Mounting in the soil: no
Mounting under water: no
For tube diameter: Other
Inlet from the rear: yes
Length: 104 mm
Width: 104 mm
Depth: 48 mm
Tackable: no
Number of inlets: 14
Type of housing feed-through: Seal membrane
Material: Plastic
Halogen free: yes
Surface protection: Untreated
Colour: Black
Degree of protection (IP): IP65
Degree of protection (NEMA): Other
Cover model: Blind cover
Transparent cover: no
Cover attachment: Snapped on
Castable: no
With casting compound: no
Sealable: no
Rated insulation voltage Ui: 500 V
Circuit integrity: None
With screening: no
Weatherproof: yes
Operating temperature: -25 … 60 °C
Explosion-tested version: no
For Ex-zone gas: None
For Ex-Zone dust: None
