Product card:
| Type | FIM1210 | |
|---|---|---|
| Product ID | 2TKA002135G1 | |
| EAN | 6410070607636 | |

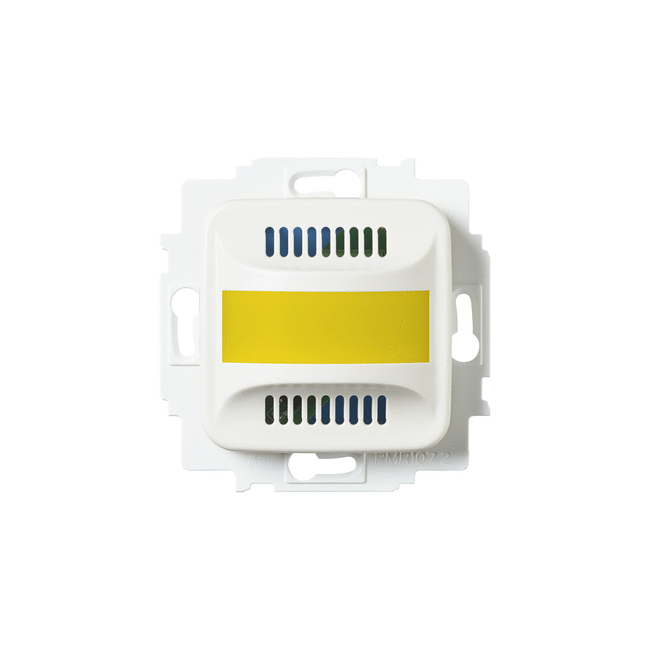

| Name | Alarm Unit Alarm Unit, yellow Signal |
|
| Description | With yellow flashing light. Interrupting sound. Operating voltage: 9,5 - 28 V ac / 9,5 - 35 V dc. current consumption: 60 mA ac / 30 mA dc. Sound intensity / frequency: 78 dB / 2,3 kHz (intensity measured at a 30 cm distance). Sound disconnectable. | |
| Package | 1/10 | |
| Unit | PCS | |
|
K |
||
Dimensions |
|
| Dimensions: | 71x71x45 mm |
| Weight: | 40 g |
Classification |
|
| Enclosure class: | IP20 |
Electrical quantities |
|
| Current consumption: | 60 mA ac / 30 mA dc |
| Operating voltage: | 9,5 - 28 V ac / 9,5 - 35 V dc |
Signal products |
|
| Sound intensity: | ≤ 78 dB |
| Sound frequency: | 2,3 kHz |
thermal conditions |
|
| Operating temperature: | 5 … 40 °C |
| Storage temperature: | -40 … 70 °C |
ETIM |
|
| ETIM 7: | EC002247 |
| ETIM 8: | EC002247 |
| Name | File type | Size |
|---|---|---|
| PDF-Product card | ||
| Dimensional drawing (new window) | 348 kB | |
| Installation instruction | HTML | |
| Symbol | 216 kB | |
| Internal Connection | 129 kB | |
| Circuit diagram | HTML | |
| CE-declaration | HTML |
