Product card:

Type AP7.1
Product ID 2TKA140009G1
EAN 6410016125187
Name Connection box IP44

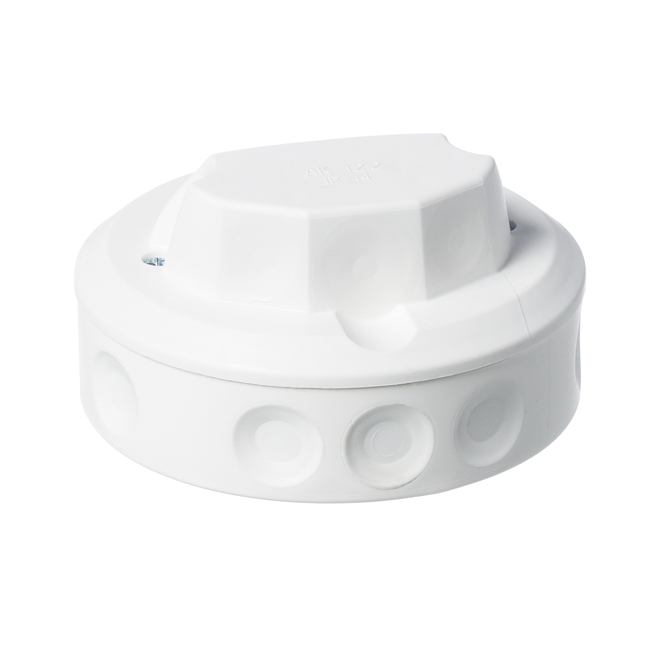

Junction box with connection cover, IP44, Ø 115 mm, white
Description The round, dual-component connection box AP7.1 (2,5 mm², 440 V) is equipped with 10 membrane cable entries (17 mm) and two in the bottom. The cover of the box is equipped with three membrane seals (one Ø 20mm and two Ø 16mm) and with three strain-reliefs.
Package 50/
Unit PCS


JMNLEK
  IP44

Classification
Enclosure class: IP44

Colors
Colour: White
Colour code: RAL9003

ETIM
ETIM 7: EC002600
ETIM 8: EC002600

ETIM 8

Max. conductor cross section: 6 mm²
Equipped with: Other
Shape: Round
Mounting method: Universal
Mounting in the soil: no
Mounting under water: no
For tube diameter: Other
Inlet from the rear: yes
Depth: 74 mm
Diameter: 115 mm
Tackable: no
Number of inlets: 12
Type of housing feed-through: Seal membrane
Material: Plastic
Halogen free: yes
Surface protection: Untreated
Colour: White
Degree of protection (IP): IP44
Degree of protection (NEMA): Other
Cover model: Other
Transparent cover: no
Cover attachment: Screwed
Castable: no
With casting compound: no
Sealable: no
Rated insulation voltage Ui: 400 V
Circuit integrity: None
With screening: no
Weatherproof: yes
Operating temperature: -15 … 60 °C
Explosion-tested version: no
For Ex-zone gas: None
For Ex-Zone dust: None
