Product card:

Type AP75
Product ID 2TKA140010G1
EAN 6410016125200

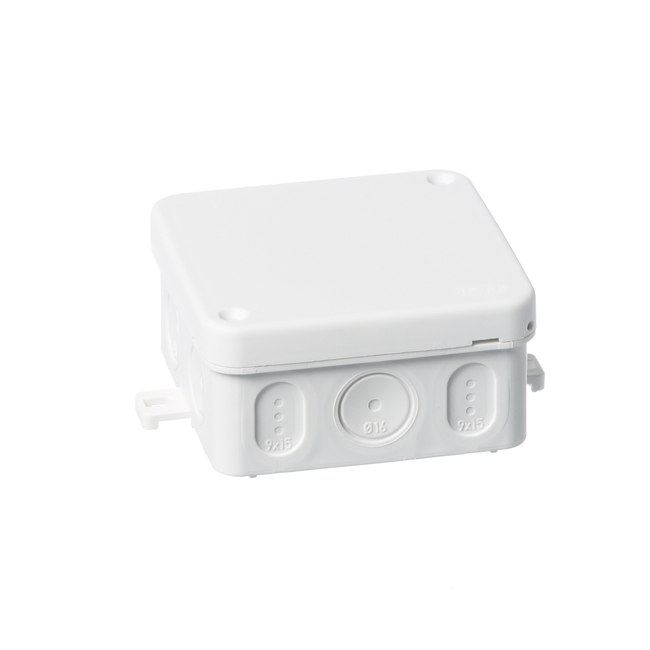

Name Junction box IP65
Surface-mounted junction box, white 75 x 75 mm
Description The AP75 junction box (2,5 mm², 450 V) is equipped with fixed, two-component membranelid cable entries, 10 in the sides and three on the bottom. It has a stiff frame (75 x 75 mm). Suitable for cables up to Ø 18. The locks box by snapping and can be opened by inserting a screwdriver into the opening slots. Pull-out brackets make it possible to mount it to a conductive base. The box can also be sealed. Mounting temperature -15...+60 °C. Made of halogen free material (IEC/61249-2-21).
Package 5/50
Unit PCS


JMNLUK
  BVBBVB IP65

Dimensions
Dimensions: 75x75 mm

Classification
Enclosure class: IP65

Electrical quantities
Rated voltage: 450 V
Wire range: 2.5 mm²

Colors
Colour: White
Colour code: RAL9003

ETIM
ETIM 7: EC002600
ETIM 8: EC002600

ETIM 8

Max. conductor cross section: 2.5 mm²
Equipped with: None
Shape: Square
Mounting method: Universal
Mounting in the soil: no
Mounting under water: no
For tube diameter: Other
Inlet from the rear: yes
Length: 75 mm
Width: 75 mm
Depth: 38 mm
Tackable: no
Number of inlets: 13
Type of housing feed-through: Seal membrane
Material: Plastic
Halogen free: yes
Surface protection: Untreated
Colour: White
Degree of protection (IP): IP65
Degree of protection (NEMA): Other
Cover model: Blind cover
Transparent cover: no
Cover attachment: Snapped on
Castable: no
With casting compound: no
Sealable: yes
Rated insulation voltage Ui: 400 V
Circuit integrity: None
With screening: no
Weatherproof: yes
Operating temperature: -15 … 60 °C
Explosion-tested version: no
For Ex-zone gas: None
For Ex-Zone dust: None
