Product card:

Type AUS15.2
EAN 6410011523841

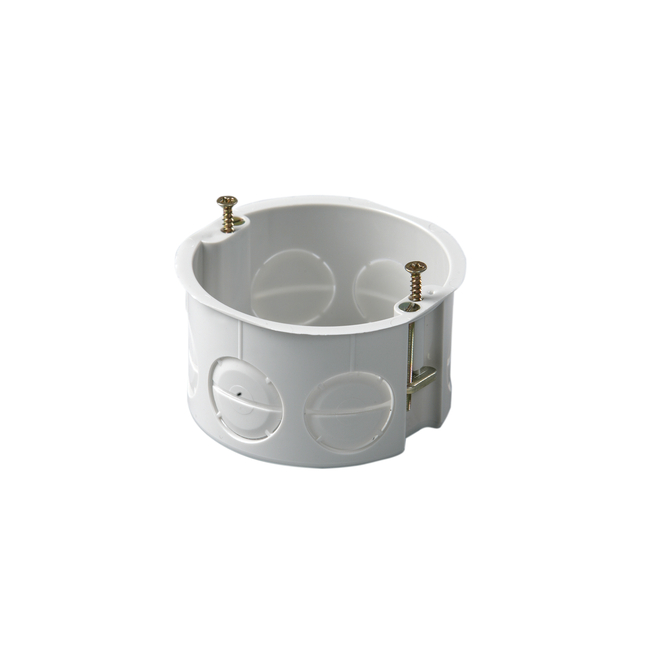

Name Mounting box
Mounting box for board walls
Description The AUS15.2 mounting box is used in buildings that have board walls. The holes are made with a hole saw (AT1, or equivalent). After the required conduit or cable inlets have been knocked out, the box is inserted in the hole. Turning the screws clockwise tightens the fastener against the board and secures the box in place. Conduits and cables are attached by using inlets that are pushed through from inside the box. Made of halogen free material (IEC/61249-2-21) and fulfills the requirements of the glow wire test according to the standard IEC/EN60670: 2005 (850 °C).
Package 50/
Unit PCS


JM8K


Attachments PDF PDF-Product card
  PDF  Dimensional drawing (new window) 283 kB

Technical specification

ETIM

ETIM 5.0: EC002601 (EC002601)

ETIM 5

Mounting method: Flush mounted (plaster)
Shape: Round
Construction type: Device connection box (round/square)
Model: Single
Equipped with: None
Diameter: 71 mm
Depth: 43 mm
Internal depth: 41 mm
For number of electric fittings: 1
Mounting switching equipment: Screwing
With screws: 1
Type of housing feed-through:
For tubediameter: 20 mm
Suitable for cable diameter: 8 … 13 mm
Pipe locking: 0
Inlet from the rear: 1
Number of inlets: 0
Material: Plastic
Halogen free: 1
Surface protection: Untreated
Colour: White
Degree of protection (IP): Other
Cover: None
Cover attachment: Not applicable
Sealable: 0
Circuit integrity: None
With screening: 0
Wind proof: 0
Max. conductor cross section: 0 mm²
Number of poles of the clamp: 0
Clamp position fixed: 0
Luminaire hook mounting: 0
Nozzle: None
With nail lugs: 0
